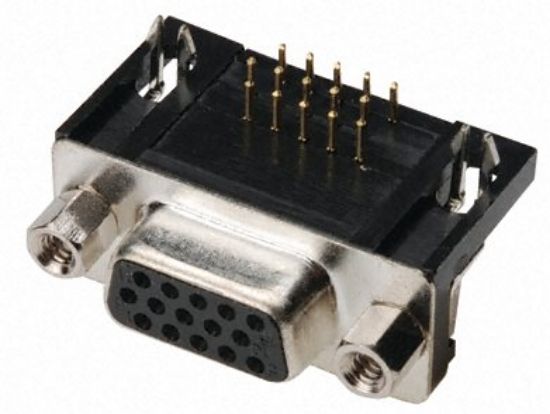

Assmann A-HDF 15 A-KG/T

D-Sub, right-angled, high-Density, for PCB mounting, 15 - 62-contacts
Üretici: Assmann
Stok Kodu: A-HDF 15 A-KG/T
<ul> <li>Insulator material: PBT, UL94V-0</li> <li>Contact material: Brass</li> <li>Plating: Ni, Au</li> <li>Contact resistance: 15m&Omega; max</li> <li>Insulation resistance: 3000M&Omega; min</li> <li>Current rating: 3A</li> <li>Operating temperature: -55&deg;C - +105&deg;C</li> <li>Operating voltage: 250V AC</li> <li>Test voltage: 1000V AC</li> <li>Contact style: F - Female</li> <li>No. of contacts: 15</li> <li>Standard: Quality class III</li> </ul>
46,46 TL
42,16 TL
increase decrease
<ul> <li>Insulator material: PBT, UL94V-0</li> <li>Contact material: Brass</li> <li>Plating: Ni, Au</li> <li>Contact resistance: 15m&Omega; max</li> <li>Insulation resistance: 3000M&Omega; min</li> <li>Current rating: 3A</li> <li>Operating temperature: -55&deg;C - +105&deg;C</li> <li>Operating voltage: 250V AC</li> <li>Test voltage: 1000V AC</li> <li>Contact style: F - Female</li> <li>No. of contacts: 15</li> <li>Standard: Quality class III</li> </ul>
*
*
*
