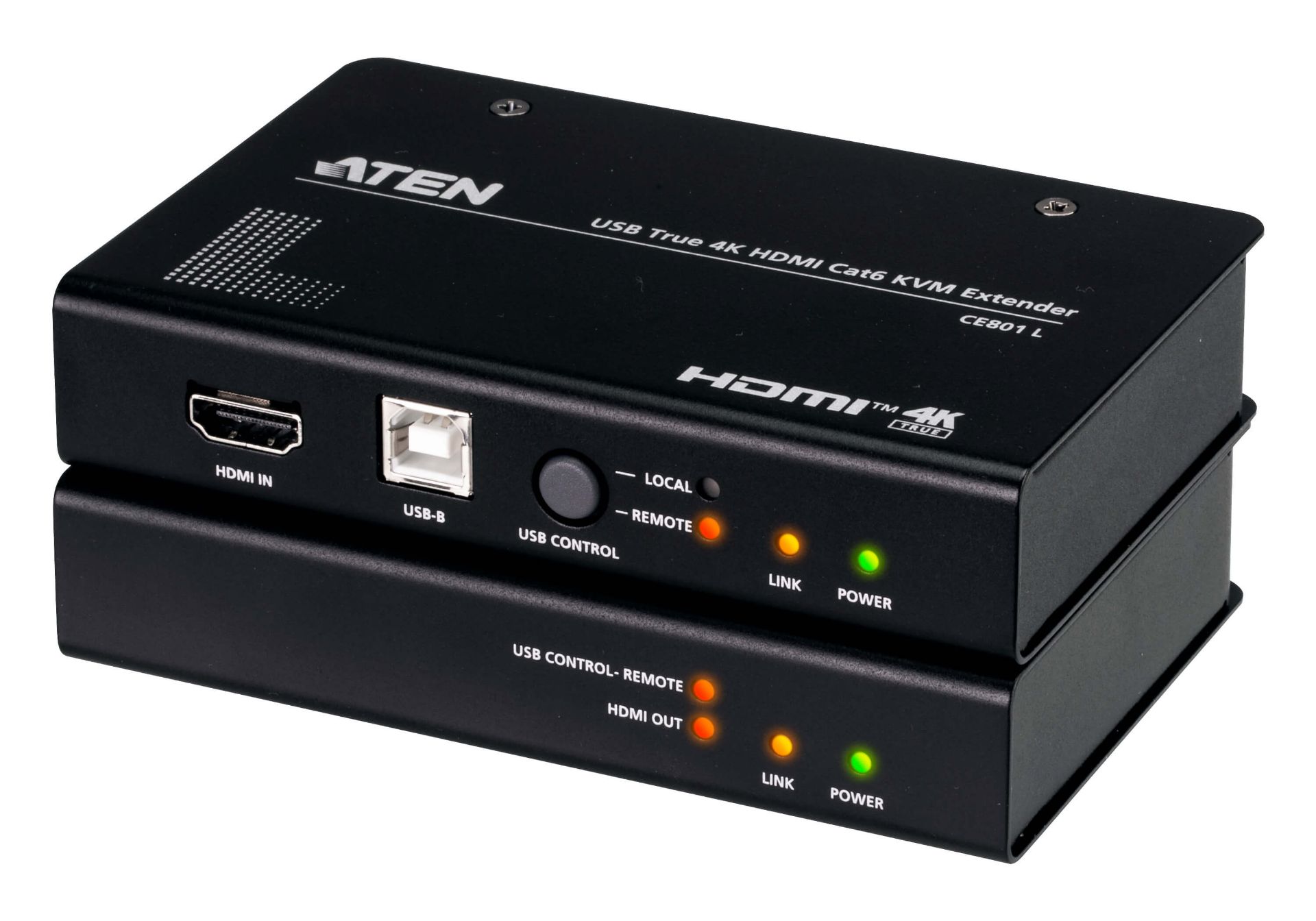

<ul> <li> Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals across 70 m over a Cat 6 cable</li> <li> Long reach mode – 1080p extension up to 100 m</li> <li> Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance</li> <li> Dual console USB keyboard / mouse operation - control privilege between the remote and local units switchable via USB control mode pushbutton</li> <li> Supports HDR 10 for enhanced video quality</li> <li> Supports wide screen format</li> <li> Supports digital audio formats such as 7.1ch Dolby and DTS audio</li> <li> Plug-and-play with no software or driver required</li> <li> Built-in 8KV/15KV ESD protection</li> <li> Rack-mountable</li> <li> DC Jack with screw-lock ensures stable and secure connection</li> </ul> <p> </p> <table> <tbody> <tr> <td> Function</td> <td> CE801L</td> <td> CE801R</td> </tr> <tr> <td colspan="3"> Connectors</td> </tr> <tr> <td> Console Ports</td> <td> 1 x HDMI Female (Black)<br /> 2 x USB Type A Female (White)*<br /> <br /> * For Keyboard & Mouse only</td> <td> 1 x HDMI Female (Black)<br /> 2 x USB Type A Female (White)*<br /> <br /> * For Keyboard & Mouse only</td> </tr> <tr> <td> KVM Ports</td> <td> 1 x HDMI (Female, Black)<br /> 1 x USB Type B (Female, White)</td> <td> N/A</td> </tr> <tr> <td> RS-232</td> <td> 1 x DB-9 Female (Black)</td> <td> 1 x DB-9 Male (Black)</td> </tr> <tr> <td> Power</td> <td> 1 x DC Jack with locking</td> <td> 1 x DC Jack with locking</td> </tr> <tr> <td> Unit To Unit</td> <td> 1 x RJ-45 Female (Black)</td> <td> 1 x RJ-45 Female (Black)</td> </tr> <tr> <td colspan="3"> Video</td> </tr> <tr> <td> Compliance</td> <td> HDMI (4K/60Hz); 4K HDR<br /> HDCP2.3 Compatible</td> <td> HDMI (4K/60Hz); 4K HDR<br /> HDCP2.3 Compatible</td> </tr> <tr> <td> Max. Resolution</td> <td> 3840 x 2160 @ 60Hz (4:4:4)</td> <td> 3840 x 2160 @ 60Hz (4:4:4)</td> </tr> <tr> <td> Max. Resolutions / Distance</td> <td> 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a /ATEN 2L-29330 Cat 6 cable)<br /> 1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable with Long reach mode enabled )</td> <td> 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable)<br /> 1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable with Long reach mode enabled )</td> </tr> <tr> <td colspan="3"> LEDs</td> </tr> <tr> <td> Power</td> <td> 1 (Green)</td> <td> 1 (Green)</td> </tr> <tr> <td> Link</td> <td> 1 (Orange)</td> <td> 1 (Orange)</td> </tr> <tr> <td> Video</td> <td> N/A</td> <td> 1 (Orange)</td> </tr> <tr> <td> Console Status</td> <td> 2 (Orange)</td> <td> 1 (Orange)</td> </tr> <tr> <td colspan="3"> Switches</td> </tr> <tr> <td> DIP</td> <td> 1 x 2 pin</td> <td> N/A</td> </tr> <tr> <td colspan="3"> Pushbuttons</td> </tr> <tr> <td> Operating Mode Selection</td> <td> 1 x Pushbutton</td> <td> N/A</td> </tr> <tr> <td> Power Consumption</td> <td> DC5V:2.59W:28BTU/h<br /> <br /> Note:<br /> ● The measurement in Watts indicates the typical power consumption of the device with no external loading.<br /> ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.</td> <td> DC5V:1.88W:13BTU/h<br /> <br /> Note:<br /> ● The measurement in Watts indicates the typical power consumption of the device with no external loading.<br /> ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.</td> </tr> <tr> <td colspan="3"> Environmental</td> </tr> <tr> <td> Operating Temperature</td> <td> 0-40˚C</td> <td> 0-40˚C</td> </tr> <tr> <td> Storage Temperature</td> <td> -20-60˚C</td> <td> -20-60˚C</td> </tr> <tr> <td> Humidity</td> <td> 0-80% RH, Non-condensing</td> <td> 0-80% RH, Non-condensing</td> </tr> <tr> <td colspan="3"> Physical Properties</td> </tr> <tr> <td> Housing</td> <td> Metal</td> <td> Metal</td> </tr> <tr> <td> Weight</td> <td> 0.32 kg ( 0.7 lb )</td> <td> 0.31 kg ( 0.68 lb )</td> </tr> <tr> <td> Dimensions (L x W x H)</td> <td> 12.80 x 8.21 x 2.50 cm<br /> (5.04 x 3.23 x 0.98 in.)</td> <td> 12.80 x 8.15 x 2.50 cm<br /> (5.04 x 3.21 x 0.98 in.)</td> </tr> <tr> <td> Note</td> <td colspan="2"> For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.</td> </tr> </tbody> </table> <br /> <table border="1" cellpadding="0" cellspacing="0" style="width: 1112px" width="1111"> <colgroup> <col /> <col span="2" /> </colgroup> <tbody> <tr height="22"> <td height="220" rowspan="10" style="height:220px;width:205px;"> Remote HDMI out</td> <td style="width:40%;"> 640 x 480 @ 60/67/72/75 Hz</td> <td style="width:40%;"> 1600 x 1200 @ 60 Hz</td> </tr> <tr height="22"> <td height="22" style="height:22px;"> 640 x 480 60 Hz (4:3)</td> <td> 1680 x 1050 @ 60 Hz</td> </tr> <tr height="22"> <td height="22" style="height:22px;"> 480p 60 Hz (4:3)/(16:9)</td> <td> 1920 x 1080 @ 60 Hz</td> </tr> <tr height="22"> <td height="22" style="height:22px;"> 576p 50 Hz (4:3)/(16:9)</td> <td> 720p 50/60 Hz</td> </tr> <tr height="22"> <td height="22" style="height:22px;"> 800 x 600 @ 56/60/72/75 Hz</td> <td> 1080i 50/60 Hz</td> </tr> <tr height="22"> <td height="22" style="height:22px;"> 1024 x 768 @ 60/70/75 Hz</td> <td> 1080p 24/25/30/50/60 Hz</td> </tr> <tr height="22"> <td height="22" style="height:22px;"> 1280 x 800 @ 60 Hz</td> <td> 1080p 60 Hz</td> </tr> <tr height="22"> <td height="22" style="height:22px;"> 1280 x 1024 @ 60/75 Hz</td> <td> 3840 x 2160p 24/25/30 Hz</td> </tr> <tr height="22"> <td height="22" style="height:22px;"> 1400 x 1050 @ 60 Hz</td> <td> 3840 x 2160p 50/60 Hz 4:2:0</td> </tr> <tr height="22"> <td height="22" style="height:22px;"> 1440 x 900 @ 60 Hz</td> <td> </td> </tr> </tbody> </table> <p> </p>
