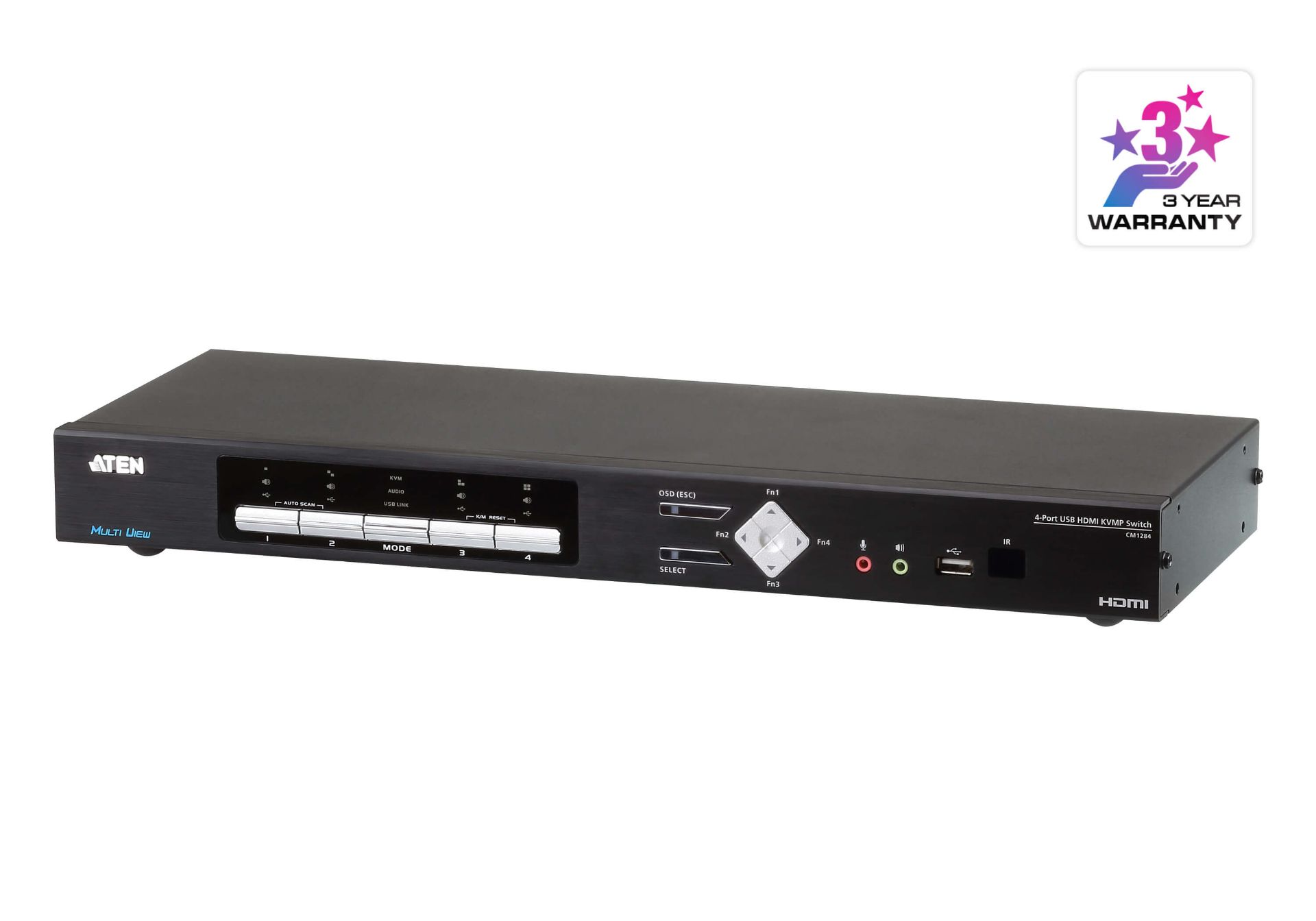

<div class="tab-content clearfix ui-tabs-panel ui-widget-content ui-corner-bottom tab-pane active" id="features-tab" role="tabpanel"> <div class="col-sm-12 col-lg-12"> <p> <img alt="" src="http://www.bimel.com.tr/resim/?s=17846" style="width: 550px; height: 509px; float: left; margin: 20px;" /></p> <ul> <li> Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)</li> <li> Features dual output on console side – a multi-view output and a full screen output</li> <li> Easily resizes and / or reposition any PiP or PbP to suit users’ viewing needs</li> <li> System configuration via front panel, OSD, IR Remote, and RS-232 commands – display mode and port selection</li> <li> Supports superior video quality – Up to 4K (4096 x 2160 @ 30 Hz)</li> <li> Drop down menu – edit display windows and other functions with the mouse and on-screen control panel</li> <li> Computer selection via front panel pushbutton and hotkey, mouse, and the serial commands*</li> <li> Boundless Switching – Simply moves the mouse cursor across windows to switch to other video sources</li> <li> Video DynaSync™ özelliği - Port'lar arasında geçişlerde görüntünün optimize edilmesini sağlar. Sistem açılışlarında görüntüde yaşanabilecek olası problemlerin minimize edilmesini sağlar.</li> <li> EDID Expert™ – Selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens</li> <li> DCC (Daisy Chain Control) – Controls up to 3 additional CM1284 units from a single console</li> <li> Cascade up to 2 levels – Controls up to 16 computers (with up to 4 x 4 Multi-view mode)</li> <li> HDCP 1.4 compliant</li> <li> Console keyboard emulation / bypass feature that support most multimedia keyboards</li> <li> Console mouse port emulation / bypass feature that supports most mouse drivers and multifunction mice</li> <li> Independent switching for USB peripheral port, audio function and KVM switch focus</li> <li> Power on detection</li> <li> Auto Scan feature</li> <li> Firmware upgradable via computer’s USB port</li> <li> Full bass response provides a rich experience for 2.1 channel audio</li> <li> Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards</li> <li> Hot-pluggable</li> <li> Supports keyboard combinations via emulation (for Sun / Mac)**<br /> <br /> Note:<br /> *Mouse port switching is only workable under mouse emulation mode and is for 3-key USB wheel mouse only<br /> **PC keyboard combinations emulate Mac keyboard. Mac keyboard only work with their own computers</li> </ul> </div> </div> <p> </p> <table border="1" class="spec_table"> <tbody> <tr> <td class="title"> Computer Connections</td> <td class="value"> 4</td> </tr> <tr> <td class="title"> Port Selection</td> <td class="value"> Pushbuttons, Hotkeys, IR Remote Control, On-Screen Display(OSD), RS-232 Commands</td> </tr> <tr> <td class="title" colspan="2"> Connectors</td> </tr> <tr> <td class="subtitle"> Console Ports</td> <td class="value"> 2 x USB Type A Female<br /> 2 x HDMI Female (Black)<br /> 2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel)<br /> 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)<br /> 2 x RJ-45</td> </tr> <tr> <td class="subtitle"> KVM (Computer) Ports</td> <td class="value"> 4 x USB Type B Female (White)<br /> 4 x HDMI Female (Black)<br /> 4 x 3.5mm Audio Jack Female (Green)<br /> 4 x 3.5mm Audio Jack Female (Pink)</td> </tr> <tr> <td class="subtitle"> Power</td> <td class="value"> 1 x IEC320 Jack</td> </tr> <tr> <td class="subtitle"> USB Hub</td> <td class="value"> 2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)</td> </tr> <tr> <td class="title" colspan="2"> Switches</td> </tr> <tr> <td class="subtitle"> Selected</td> <td class="value"> 11 x Pushbuttons</td> </tr> <tr> <td class="title" colspan="2"> LEDs</td> </tr> <tr> <td class="subtitle"> KVM</td> <td class="value"> 4 (Orange)</td> </tr> <tr> <td class="subtitle"> Audio</td> <td class="value"> 4 (Green)</td> </tr> <tr> <td class="subtitle"> USB</td> <td class="value"> 4 (Green)</td> </tr> <tr> <td class="title" colspan="2"> Emulation</td> </tr> <tr> <td class="subtitle"> Keyboard / Mouse</td> <td class="value"> USB</td> </tr> <tr> <td class="title"> Video</td> <td class="value"> 4096 x 2160 @ 30 Hz</td> </tr> <tr> <td class="title"> Scan Interval</td> <td class="value"> 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds)</td> </tr> <tr> <td class="title"> Maximum Input Power Rating</td> <td class="value"> 100-240 VAC; 50/60 Hz; 1A</td> </tr> <tr> <td class="title"> Power Consumption</td> <td class="value"> AC110V:16.0W:101BTU<br /> AC220V:14.8W:95BTU</td> </tr> <tr> <td class="title" colspan="2"> Environmental</td> </tr> <tr> <td class="subtitle"> Operating Temperature</td> <td class="value"> 0-50°C</td> </tr> <tr> <td class="subtitle"> Storage Temperature</td> <td class="value"> -20-60°C</td> </tr> <tr> <td class="subtitle"> Humidity</td> <td class="value"> 0-95% RH, Non-condensing</td> </tr> <tr> <td class="title" colspan="2"> Physical Properties</td> </tr> <tr> <td class="subtitle"> Housing</td> <td class="value"> Metal</td> </tr> <tr> <td class="subtitle"> Weight</td> <td class="value"> 2.46 kg ( 5.42 lb )</td> </tr> <tr> <td class="subtitle"> Dimensions (L x W x H)</td> <td class="value"> 43.72 x 16.40 x 4.40 cm<br /> (17.21 x 6.46 x 1.73 in.)</td> </tr> </tbody> </table> <p> </p> <div class="package-content"> <h3> Package Contents</h3> <ul> <li> 1x CM1284 4-Port USB HDMI Multi-View KVMPTM Switch</li> <li> 4x USB HDMI Cables</li> <li> 1x Power Cord</li> <li> 1x IR Remote Control</li> <li> 1x Rack Mount Kit</li> <li> 1x User Instructions</li> </ul> </div> <p> </p>
