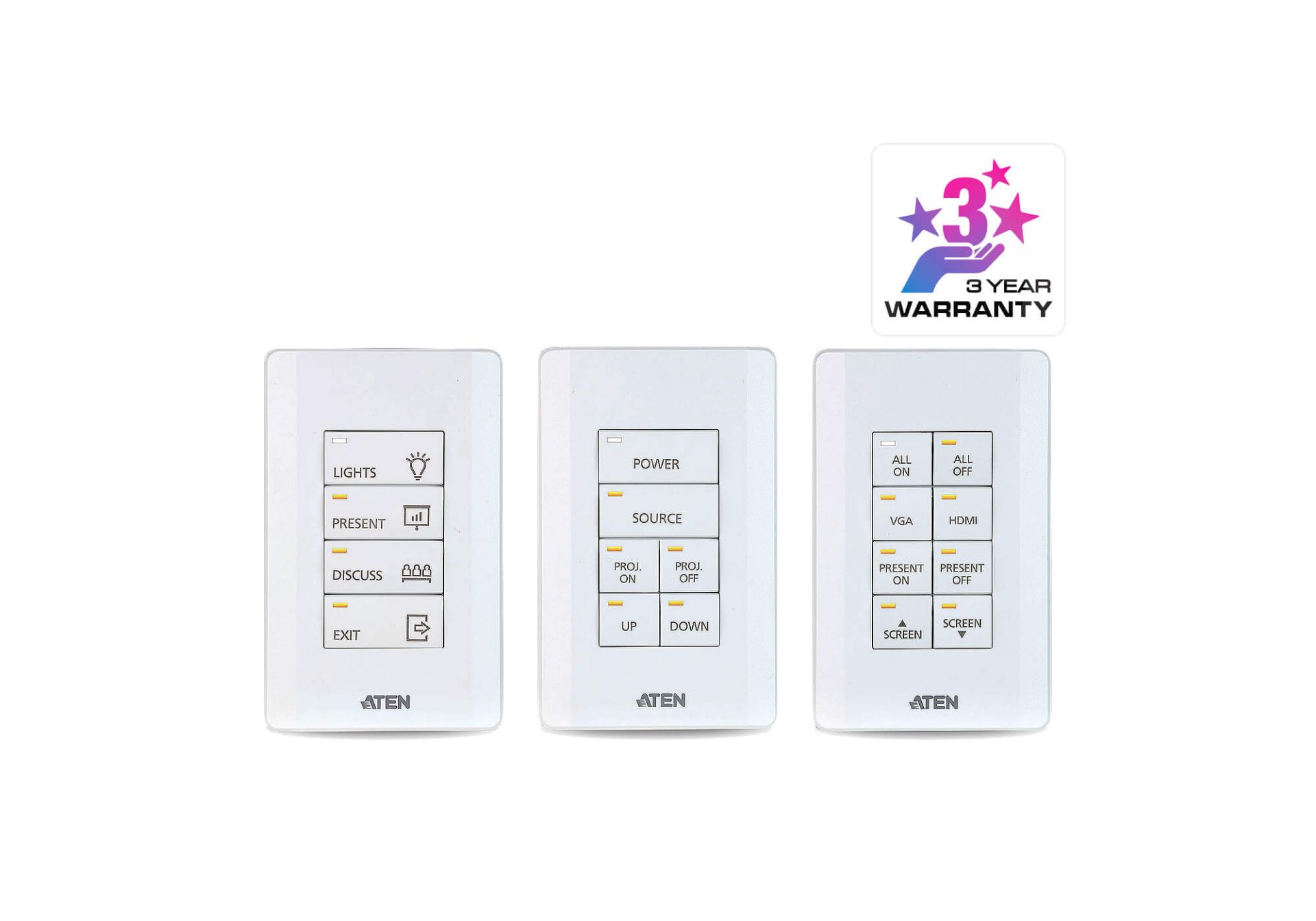

<div class="tab-content clearfix ui-tabs-panel ui-widget-content ui-corner-bottom tab-pane active" id="features-tab" role="tabpanel"> <div class="col-sm-12 col-lg-12"> <ul> <li> Key pad - provides physical connection to the ATEN Control System</li> <li> Fully customizable with 14 layout combinations of 4 to 8 buttons</li> <li> System LED indicators for quick connection status check</li> <li> Dual-color button LEDs for clear indication and visibility in dark environments</li> <li> Easy ID paring with Control Box for Ethernet communication</li> <li> Up to 8 keypads connect to a single Control Box for future scalability</li> <li> Unrestricted modes support flexible behavior settings for each button</li> <li> Intuitive web GUI for easy keypad configuration</li> <li> Dual power supply – DC 5V or Power over Ethernet</li> <li> <a href="http://www.aten.com/ext_data/global_en/VK_Keypad_Engraving_Service/aten_keypad.html" rel="noopener" target="_blank">Customized button engraving service</a></li> </ul> <table border="1" class="spec_table"> <tbody> <tr> <td class="title" colspan="2"> Interfaces</td> </tr> <tr> <td class="subtitle"> Ethernet</td> <td class="value"> • 1 x RJ-45 Female, 10/100Base-T<br /> • Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS<br /> • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:<br /> IP: 192.168.0.60<br /> Subnet Mask: 255.255.255.0</td> </tr> <tr> <td class="subtitle"> Keypad Layout</td> <td class="value"> 4~8 buttons customizable in 14 keypad layouts</td> </tr> <tr> <td class="title" colspan="2"> Switches</td> </tr> <tr> <td class="subtitle"> Controller ID</td> <td class="value"> 1 x 16-segment Switch</td> </tr> <tr> <td class="subtitle"> Keypad ID</td> <td class="value"> 1 x 8-segment Switch</td> </tr> <tr> <td class="title"> Reset Button</td> <td class="value"> 1 x Semi-recessed Pushbutton</td> </tr> <tr> <td class="title"> Power Consumption</td> <td class="value"> DC5V:1.25W:6BTU<br /> DC48V:1.58W:7BTU</td> </tr> <tr> <td class="title" colspan="2"> Environmental</td> </tr> <tr> <td class="subtitle"> Operating Temperature</td> <td class="value"> 0 – 50°C</td> </tr> <tr> <td class="subtitle"> Storage Temperature</td> <td class="value"> –20 – 60°C</td> </tr> <tr> <td class="subtitle"> Humidity</td> <td class="value"> 0 - 80% RH, Non-Condensing</td> </tr> <tr> <td class="title" colspan="2"> Physical Properties</td> </tr> <tr> <td class="subtitle"> Housing</td> <td class="value"> Plastic</td> </tr> <tr> <td class="subtitle"> Weight</td> <td class="value"> 0.13 kg ( 0.29 lb )</td> </tr> <tr> <td class="subtitle"> Dimensions (L x W x H)</td> <td class="value"> 11.63 x 7.06 x 3.89 cm<br /> (4.58 x 2.78 x 1.53 in.)</td> </tr> <tr> <td class="subtitle"> Faceplate Dimension (L x W x H)</td> <td class="value"> 11.92 x 7.42 x 0.92 cm<br /> (4.69 x 2.92 x 0.36 in.)</td> </tr> </tbody> </table> </div> </div> <p> </p>
