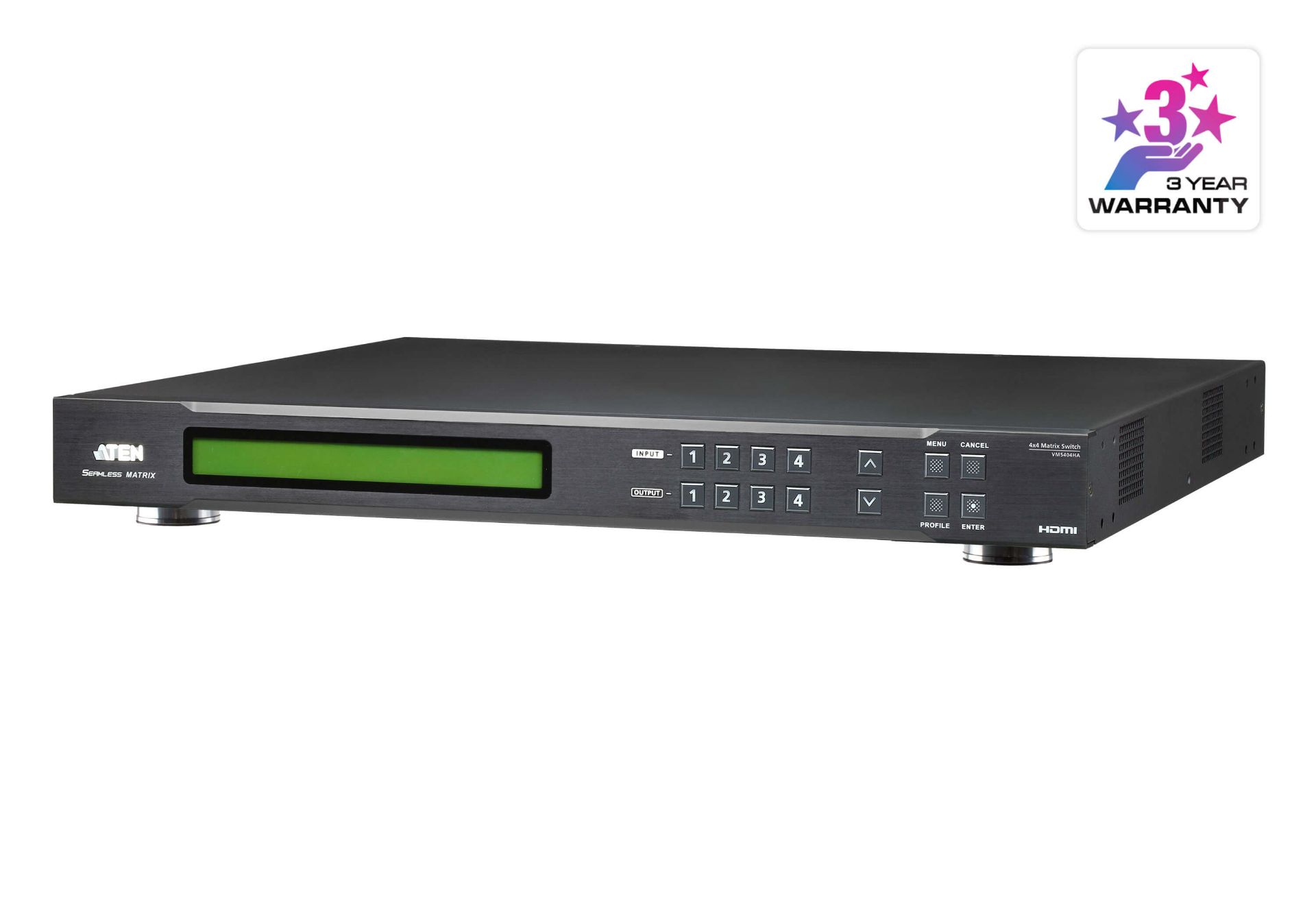

<p> <img alt="" src="http://www.bimel.com.tr/resim/?s=28084" style="width: 500px; height: 262px; margin: 20px; float: left;" /></p> <div class="tab-content clearfix ui-tabs-panel ui-widget-content ui-corner-bottom tab-pane active" id="features-tab" role="tabpanel"> <div class="col-sm-12 col-lg-12"> <ul> <li> Routes any of 4 HDMI sources to any of 4 HDMI displays</li> <li> Local HDMI output – enables previewing of up to 4 video sources in a<a href="https://www.aten.com/global/en/product-landing-page/multi-view-kvmp-switches/?utm_medium=internal_link" target="_blank"> multi-view</a> window</li> <li> Multiple system configuration methods including front panel pushbuttons / RS-232 / Ethernet (Telnet / Web GUI) connection, ATEN<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-58" target="_blank"> Video Matrix</a> Control app, and<a href="https://www.aten.com/controlsystem/?utm_medium=internal_link" target="_blank"> ATEN Control System</a></li> <li> Device status can be viewed and controlled via ATEN<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-58" target="_blank"> Video Matrix</a> Control App</li> <li> Video Wall functionality via intuitive web GUI* allows for customization of up to 8 layouts for any type of video walls</li> <li> Built-in scaler automatically converts input resolutions for optimal appearance on the display</li> <li> FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate</li> <li> ATEN<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> Seamless Switch</a> technology* – adopts FPGA to unify video formats so as to provide continuous video streams, real-time switching, and stable signal transmission</li> <li> EDID Expert – selects optimum<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> EDID</a> settings for smooth power-up, high-quality display, and use of the best resolution across different screens</li> <li> Audio enabled; HDMI audio can be extracted to stereo audio</li> <li> HDMI (3D, Deep color);<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> HDCP</a> 1.4</li> <li> Supports Dolby True HD and DTS HD Master audio</li> <li> Supports Consumer Electronics Control (CEC)</li> <li> ESD protection for HDMI</li> <li> Firmware upgradeable</li> <li> Rack mountable (1U design)<br /> <br /> *Note:<br /> 1. If<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> Seamless Switch</a>ing is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, disabling<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> Seamless Switch</a>ing is a must.<br /> 2. Videos may not display within range when<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> Seamless Switch</a> or Video Wall is enabled, in which case please adjust the display settings on your device.</li> </ul> </div> </div> <p> </p> <table border="1" class="spec_table"> <tbody> <tr> <td class="title" colspan="2"> Video Input</td> </tr> <tr> <td class="subtitle"> Interfaces</td> <td class="value"> 4 x HDMI Type A Female (Black)</td> </tr> <tr> <td class="subtitle"> Impedance</td> <td class="value"> 100 Ω</td> </tr> <tr> <td class="subtitle"> Max. Distance</td> <td class="value"> 5.0 m</td> </tr> <tr> <td class="title" colspan="2"> Video Output</td> </tr> <tr> <td class="subtitle"> Interfaces</td> <td class="value"> 4 x HDMI Type A Female (Black)<br /> (Array Mode): 1 x HDMI Type A Female (Black)</td> </tr> <tr> <td class="subtitle"> Impedance</td> <td class="value"> 100 Ω</td> </tr> <tr> <td class="subtitle"> Max. Distance</td> <td class="value"> 15 m</td> </tr> <tr> <td class="title" colspan="2"> Video</td> </tr> <tr> <td class="subtitle"> Max. Data Rate</td> <td class="value"> 6.75 Gbps (2.25 Gbps Per Lane)</td> </tr> <tr> <td class="subtitle"> Max. Pixel Clock</td> <td class="value"> 225 MHz</td> </tr> <tr> <td class="subtitle"> Compliance</td> <td class="value"> HDMI (3D, Deep Color)<br /> HDCP 1.4 Compatible<br /> Consumer Electronics Control (CEC)</td> </tr> <tr> <td class="subtitle"> Max. Resolution</td> <td class="value"> Up to 1080p</td> </tr> <tr> <td class="subtitle"> Max. Distance</td> <td class="value"> Up to 15 m</td> </tr> <tr> <td class="title" colspan="2"> Audio</td> </tr> <tr> <td class="subtitle"> Output</td> <td class="value"> 1 x Mini Stereo Jack Female (Green)</td> </tr> <tr> <td class="title" colspan="2"> Control</td> </tr> <tr> <td class="subtitle"> RS-232</td> <td class="value"> Connector: 1 x DB-9 Female (Black)<br /> Baud rate and protocol:<br /> Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No</td> </tr> <tr> <td class="subtitle"> Ethernet</td> <td class="value"> 1 x RJ-45 Female</td> </tr> <tr> <td class="title"> EDID Settings</td> <td class="value"> EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)</td> </tr> <tr> <td class="title" colspan="2"> Connectors</td> </tr> <tr> <td class="subtitle"> Power</td> <td class="value"> 1 x 3-Prong AC Socket</td> </tr> <tr> <td class="title" colspan="2"> Power</td> </tr> <tr> <td class="subtitle"> Maximum Input Power Rating</td> <td class="value"> 100-240 VAC; 50-60 Hz; 1.0A</td> </tr> <tr> <td class="title"> Power Consumption</td> <td class="value"> AC110V:35.7W:167BTU<br /> AC220V:34.9W:164BTU</td> </tr> <tr> <td class="title" colspan="2"> Environmental</td> </tr> <tr> <td class="subtitle"> Operating Temperature</td> <td class="value"> 0-40°C</td> </tr> <tr> <td class="subtitle"> Storage Temperature</td> <td class="value"> -20 - 60°C</td> </tr> <tr> <td class="subtitle"> Humidity</td> <td class="value"> 0 - 80% RH, Non-Condensing</td> </tr> <tr> <td class="title" colspan="2"> Physical Properties</td> </tr> <tr> <td class="subtitle"> Housing</td> <td class="value"> Metal</td> </tr> <tr> <td class="subtitle"> Weight</td> <td class="value"> 5.12 kg ( 11.28 lb )</td> </tr> <tr> <td class="subtitle"> Dimensions (L x W x H)</td> <td class="value"> 43.24 x 37.82 x 4.40 cm<br /> (17.02 x 14.89 x 1.73 in.)</td> </tr> </tbody> </table> <p> </p> <div class="package-content"> <h3> Package Contents</h3> <ul> <li> 1x HDMI Matrix Switch with Scaler</li> <li> 1x power cord</li> <li> 1x mounting kit</li> <li> 1x user instructions</li> </ul> </div> <p> </p>
