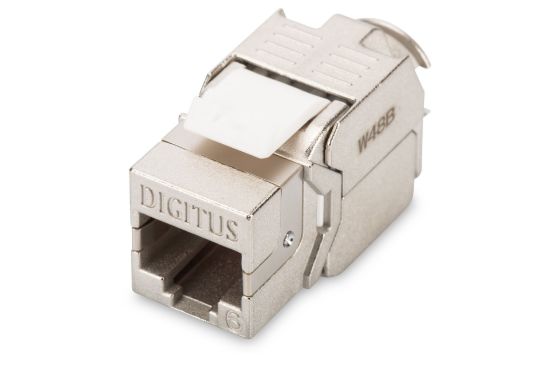

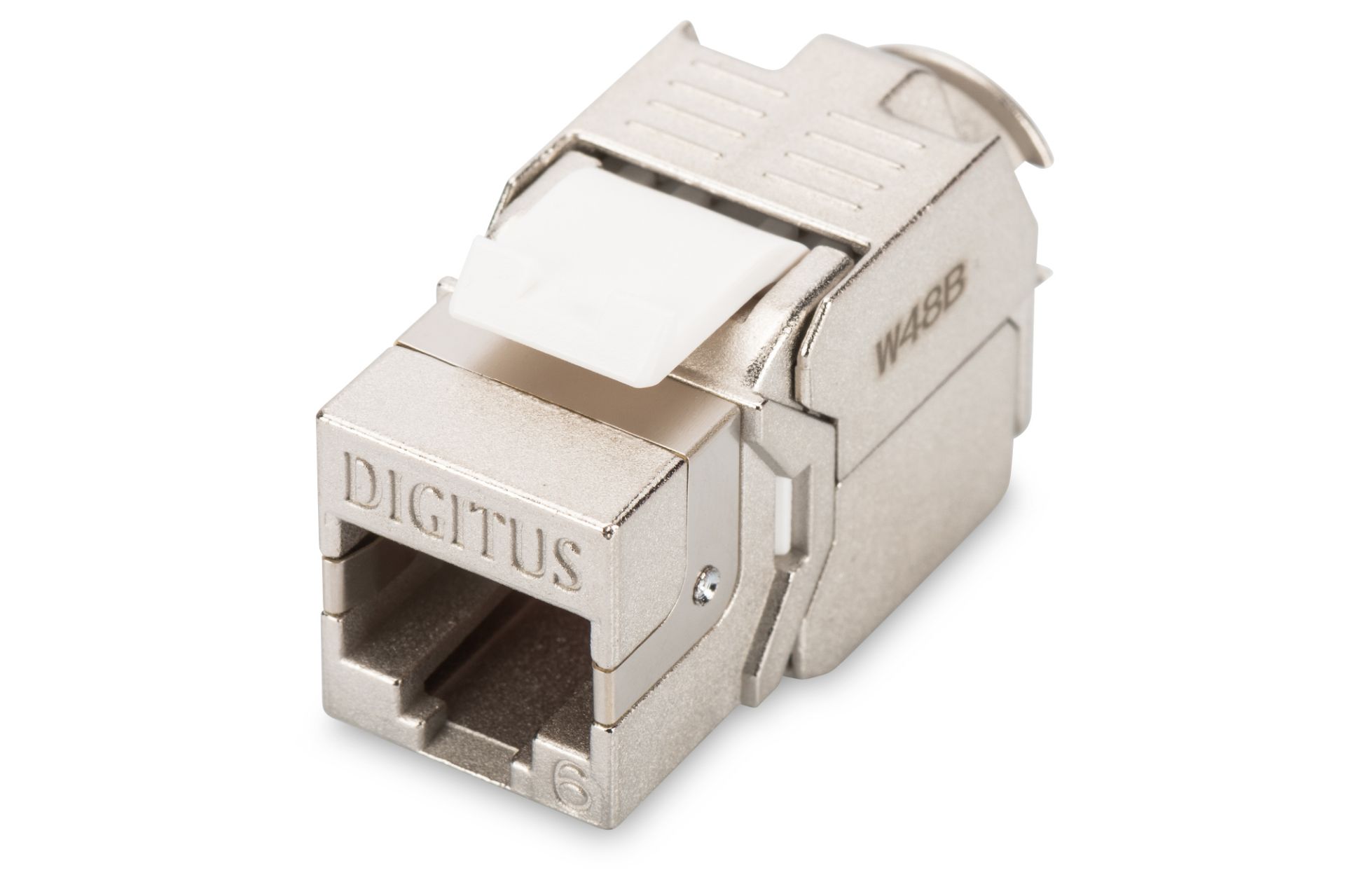

<ul> <li> Material enclosure: Zinc diecast - Nickel plated</li> <li> Material contacts: Phosphor bronze</li> <li> 360° cable screen connection for enhanced EMI protection</li> <li> Contacts coating: Nickel, gold plated 0.5 µ</li> <li> Operating Temperature: -10 °C up to +60 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)</li> <li> Material PCB: FR4, UL 94V-0, multilayer 1.45 mm thickness</li> <li> Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)</li> <li> Diameter Cu-Conductor: AWG (26/1 ... 22), stranded and solid</li> <li> RJ45 jack, female, for patch panel installation</li> <li> Compact form allows an installation of 24 x in 483mm (19") 1U blank Panel</li> <li> Suitable for bracket type DN-91410, DN-91411, DN-91412</li> <li> Opening size acc. Keystone Standard 19.35 mm x 14.8 mm</li> <li> Tool free cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B</li> <li> Suitable for design wall plates for several well-known switching programs e.g. Busch-Jaeger part number: 1812 or 1866EB</li> <li> Suitable for design wall plates for switching program PEHA part number: D 600 MJ8</li> <li> Suitable for design wall plates for switching program FELLER (CH) EDIZIOdue part number e.g.: 1183-028.FMI.F.61</li> <li> Fits easily in wall- and floor boxes, patch panels, desk boxes through short depth</li> <li> POE+ according to IEEE 802.3at</li> <li> Meets requirements acc. following standards: IEC 60603-7-51, ANSI/TIA/EIA 568-C.2, IEC 60512-27-100, ISO/IEC 11801 am. 2.</li> </ul> <ul> <li> Dimensions (HxWxD): 20,14,34 mm</li> <li> Weight: 22 g</li> </ul>
