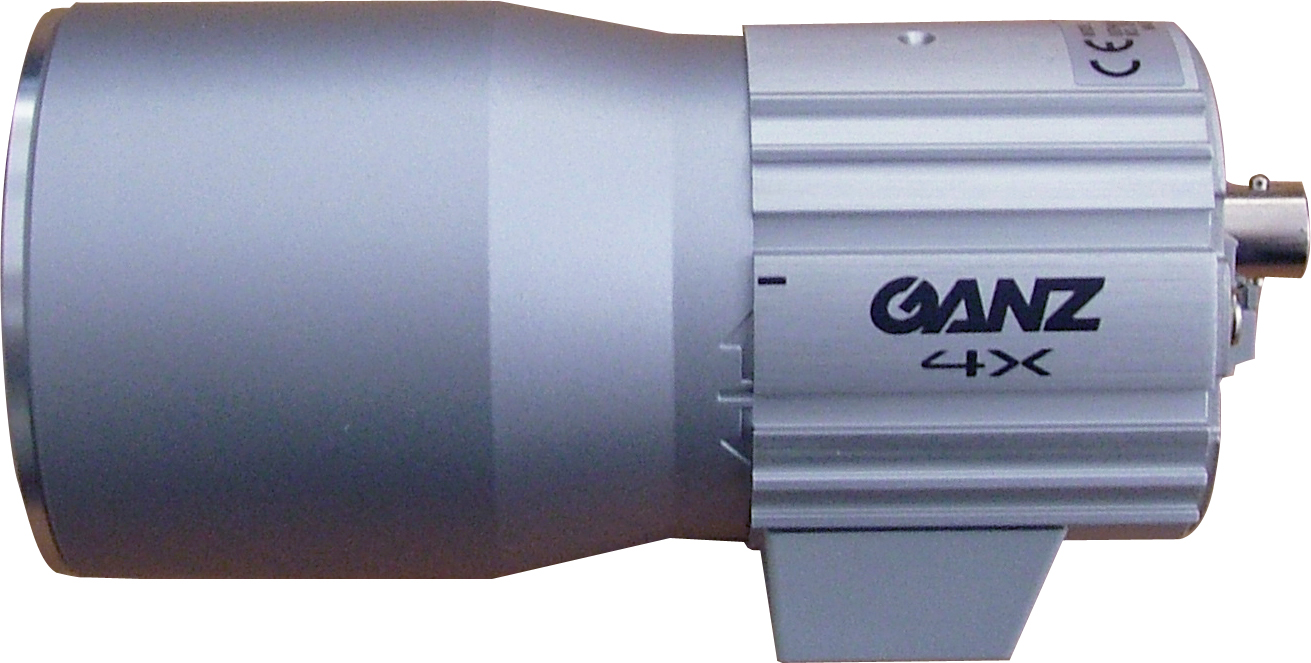

Ganz SLS-GANZ-ZC-L1210PHA

Ganz Colour High Resolution Spot Camera, 1/4 Inch CCD, 480 TV Lines, Sony Chipset, 1.5 Lux, Built-in Computar Varifocal Auto Iris, Unigue Spotlight Body Design, Varifocal 2.8-10mm Lens, 12VDC/24VAC Auto-Sensing Power, Light Weight
Üretici: Ganz
Stok Kodu: SLS-GANZ-ZC-L1210PHA
<p> - TV system: PAL<br /> - Video output: 1.0 Vp-p, 75 Ohm<br /> - Operating voltage: 12 VDC/24 VAC ± 10%, 50 Hz ± 1 Hz<br /> - Power consumption (12 VDC): 2.0 W<br /> - Power consumption (24 VAC): 2.1 W, 180 mA<br /> - Picture recorder: 1/4 Inch IT CCD, 752 × 582 pixels<br /> - Horizontal resolution: 480 TVlines<br /> - Scanning system: 2:1 Interlace<br /> - Scanning frequency (H/V): 15.625 kHz/50.0 Hz<br /> - Iris: F1.2 - 360 (DC auto iris)<br /> - Focal length: 2.8 - 10.0 mm<br /> - Light sensitivity (50 IRE): 1.5 lux<br /> - Light sensitivity (30 IRE): 0.75 lux<br /> - Shutter control: voltage<br /> - Maximum aperture ratio: 1:1.2<br /> - Flicker reduction: automatic correction<br /> - Electronic closure: 1/50 s (flicker reduction off), 1/120 s (flicker reduction on)<br /> - Signal to noise ratio: &gt; 50 dB (min. distortion)<br /> - Automatic intensification: -<br /> - Gamma characteristics: 0.45<br /> - Synchronisation: internal/mains phase<br /> - Vision angle (D/H/V): 105.8°~27°/78.2°~21.6°/55.8°~16.2°<br /> - Operating environment: –10 ... +50 °C (&lt; 85% rel. humidity, non-condensing)<br /> - Storage conditions: –20 ... +60 °C (&lt; 95% rel. humidity, non-condensing)<br /> - Weight: Approximately 200 g<br /> - Dimensions (W x H × D): 55 x 61 × 122 mm<br /> <br /> <b>Note:</b><br /> - 12 VDC/24 VAC should be provided additionally<br /> - Optional mounting brackets</p>
14864,64 TL
14493,02 TL
